Dr. Prepare 12V 100Ah LiFePO4 Lithium Ion Battery with LED Display - Series and Parallel Connection

Built-in low and high temperature protection, our Dr.Prepare 12V lithium batteries provide superior safety usage for your solar system. Supports connecting 4 batteries in series to create a 48V battery bank or in parallel to build an expanded 400Ah battery bank system. 3,000 life cycles ensure a 10-year lifetime, and our LiFePO4 batteries are all backed by a leading 10-year warranty. The built-in LED screen offers real-time power capacity monitoring, no more guesswork.

Choose our more reliable lithium iron phosphate batteries for your family RV trips, off-grid cabins, marine vehicles, solar energy storage, or lead-acid replacement.



Description

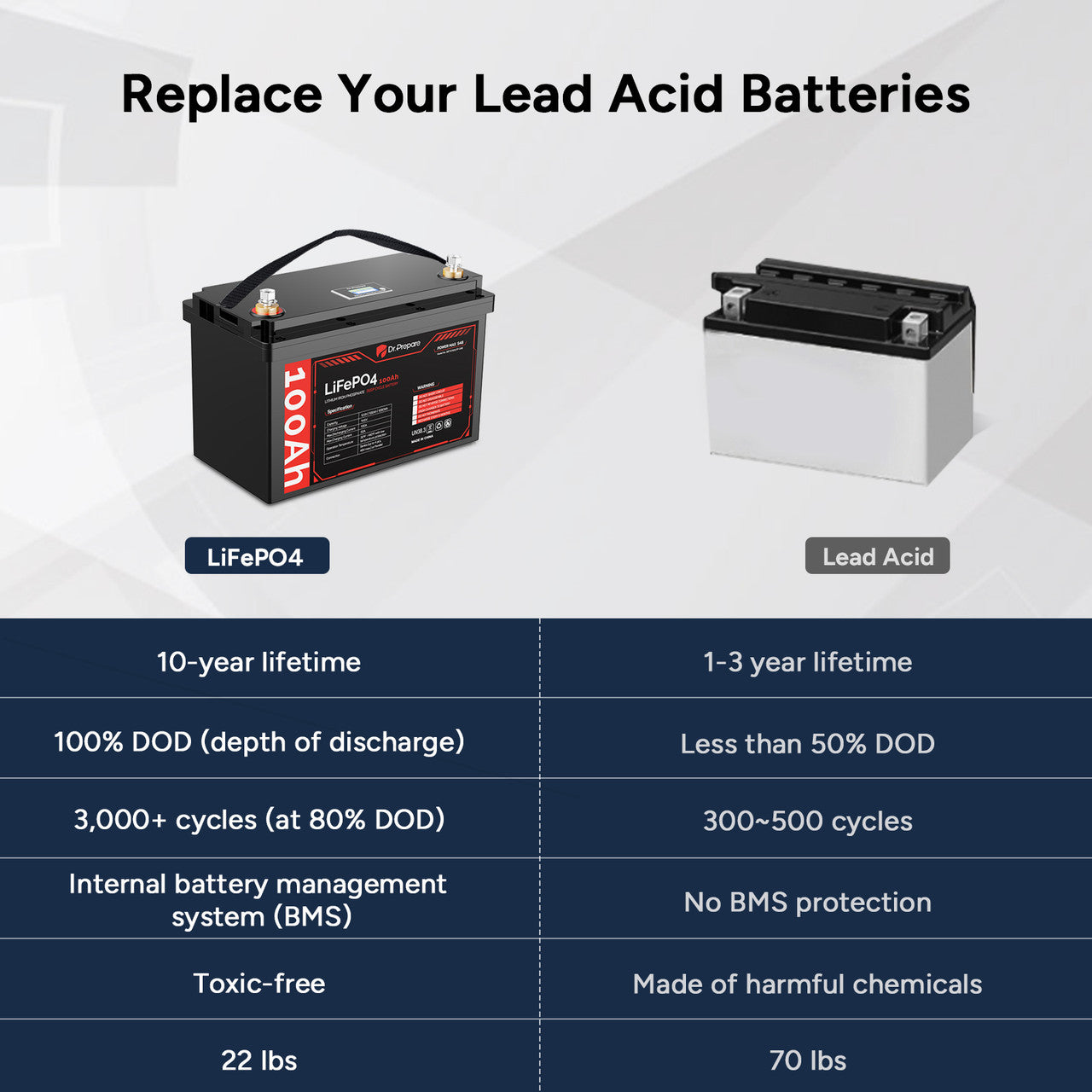

  • 【10-Year Service Life】 Dr.Prepare's 12V lithium batteries are accompanied by a 10-year product assurance and service life, a substantial improvement compared to lead-acid batteries which typically offer lifespans of only 1 to 3 years. It's the perfect choice for replacing lead-acid batteries, providing long-lasting durability.

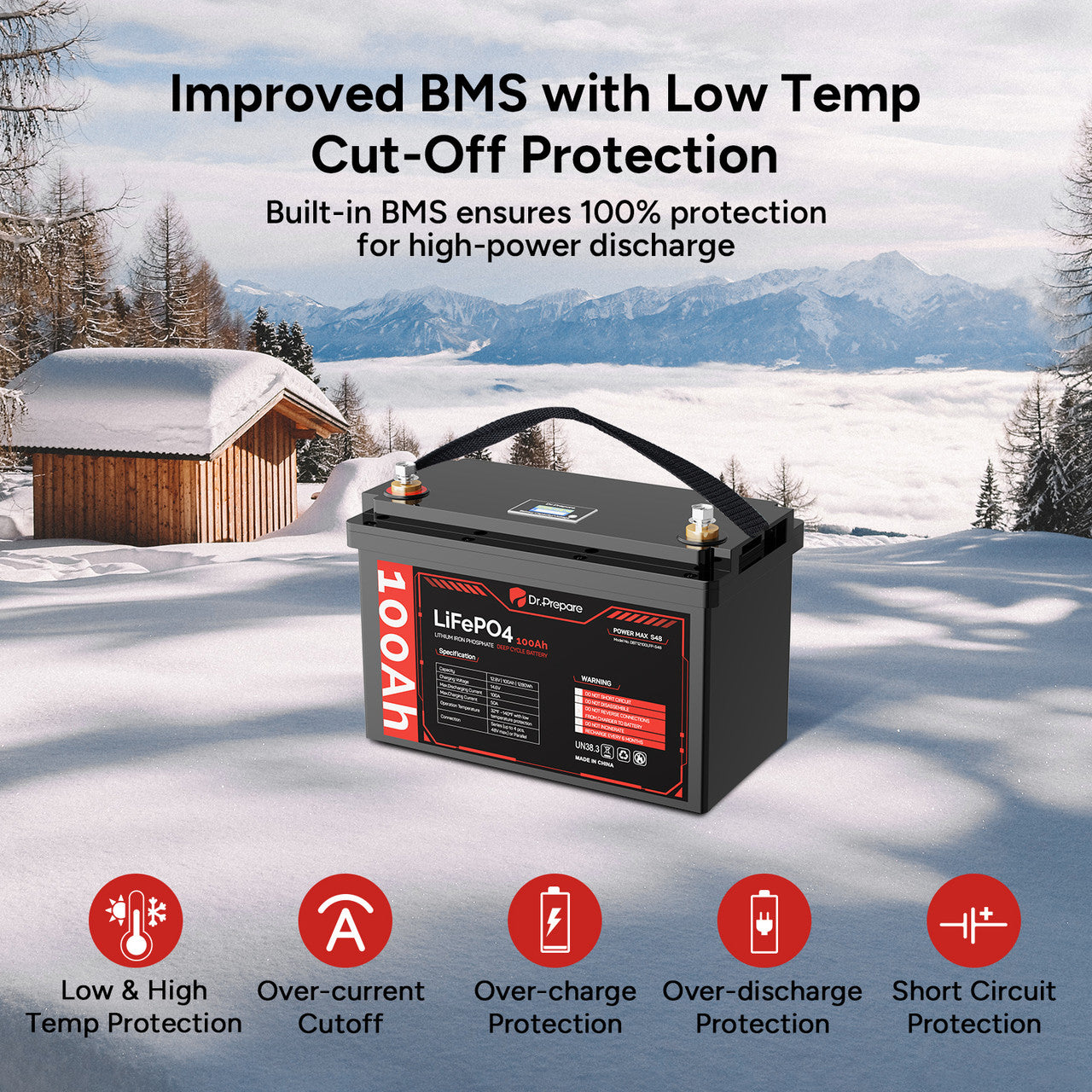

  • 【Low-Temperature Cut-Off Protection】 The low-temperature cut-off protection ensures the longevity of the battery's health. When the temperature falls within the range of 23℉ to 41℉, the charging process halts. Similarly, when the temperature drops between -13℉ to 5℉, discharging ceases. This feature makes it ideal for use in challenging and demanding environments.
  • 【Series and Parallel Connectivity】 Our LiFePO4 batteries support series and parallel connections, allowing you to create a 12V, 24V, 36V, or 48V battery bank, or 12V 200Ah, 300Ah, or 400Ah power system. You can even connect up to 16 batteries in series and parallel, building a powerful home backup power system with a 20.48 kWh capacity.
  • 【2-3 Times More Power】 Dr.Prepare 12 volt lithium batteries offer an impressive power output of 1,280 Wh, surpassing conventional lead-acid batteries of similar size by 2 to 3 times. With a maximum continuous discharge current of 100A, these batteries can power most electronic devices. Monitor the remaining power capacity and battery voltage via the built-in LED screen.
  • 【Improved BMS Protection】 Our upgraded internal BMS expertly manages cell balance, over-current, over-charge, over-discharge, temperature extremes, and short circuits. This refinement leads to enhanced performance and prolonged lifespan. Plus, IP65 dust and water resistance ensures reliable functionality.
  • 【Important Reminders】
  • 1. Ensure the battery terminals are securely fastened. Loose terminals can lead to heat accumulation and potential battery damage.
  • 2. After a full discharge at a continuous 100A, avoid immediate recharging at 50A, as this may trigger high-temperature charging protection.
  • 3. Optimal charging involves a 20A current for our lithium-ion battery. While the maximum charging current stands at 50A, exceeding this limit can result in a shortened battery lifesp
  • 4. Turn off all electrical appliances before checking the current battery capacity.
  • 5. Dr. Prepare batteries will be shipped from California, USA. We provide 10-year battery warranty and lifetime technical support, if you have any questions during usage, please feel free to contact us.



Key Features

Upgrade to Lithium Battery

20.48 kWh Power Expansion

Low Temp Protection

Choose Your Dr.Prepare LiFePO4 Battery

Title

Energy

Rated Capacity

Max. Continuous Output Power

Recommend Charge Current

Max. Charge Current

Max. Cont Discharge Current

Max. Charging Voltage

Discharge Cut-off Voltage

Low Temp Cut-off Protection

Dimensions

Weight

12V 100Ah LiFePO4 w/Meter

1,280 Wh

100Ah / 1,280 Wh

1,280 Wh

20A

50A

100A

14.6V

Lower than 11.1V

Yes

L13.07 x H8.66 x W6.77 in

22 lbs/10 kg

12V 100Ah Mini LiFePO4

1,280 Wh

100Ah / 1,280 Wh

1,280 Wh

20A

100A

100A

14.6V

Lower than 11.1V

Yes

L 10 x W 5 x H 7.8 in

22 lbs/10 kg

12V 20Ah LiFePO4

256Wh

20Ah / 256Wh

256Wh

10A

20A

20A

14.6V

Lower than 11.1V

/

L 7 x W 3 x H 6.5 in

5.95 lbs/2.7 kg

12V 8Ah LiFePO4

102.4Wh

8Ah / 102.4Wh

102.4Wh

4A

8A

8A

14.6V

Lower than 11.1V

/

L5.9 x W2.6 x H3.7 in

2.2 lbs/1kg



Package Includes

● 1 x 12V 100Ah Lithium Iron Phosphate (LiFePO4) Battery with Handheld Strap
● 1 x M8 Bolts (A Pair)



Specifications

100Ah LiFePO4 Lithium Deep Cycle Battery - Connect In Series
Technical Specifications
Rated Capacity (77°F / 25℃) 100Ah
Rated Voltage 12.8V
Energy
 1280Wh
Cycle Life 3,000 Cycles at 80% DOD
Self-discharge Rate (77°F / 25℃) 2%~3% / month
Max. Continuous Discharge Current 100A
Max. Charging Voltage 14.6V
Charging Current Optimal: 20A; Maximum: 50A
Discharge Cut-off Voltage
 Lower than 11.1V
Over-discharge Recovery Voltage 12.6V
Internal Resistance
 ≤10mΩ
Connection Method
 		In Series (up to 4);
In Parallel (up to 4);
In Parallel and Series (up to 16 batteries)
Charging Temperature Range
 32~113℉ / 0~45℃
Discharging Temperature Range 14~140℉ / -10~60℃
Low Temperature Protection Charging: 23~41℉ / -5~5℃
Discharging: -13~5℉ / -25~-15℃
High Temperature Protection
 		Charging: 140~158℉ / 60~70℃
Discharging: 158~176℉ / 70~80℃
Storage Temperature Range  -4~113℉ / -20~45℃ (Store for 1-3 months)
 -4~68℉ / -20~20℃ (Store for 1 year)
Recommended Operating Temperature
 68~86℉ / 20~30℃
Terminal Bolt Size
 M8
LED Screen
 Battery capacity and voltage
Controller Setting (for reference)
System Voltage
 12V (x N)*
Boost Charge Voltage
 14.2V (x N)*
Over-discharge Recover Voltage
 12.6V (x N)*
Over-discharge Voltage
 11.1V (x N)*
(x N)* : When it comes to a 24V(N=2) or 48V(N=4) system, the voltage should multiply by the number of series batteries.

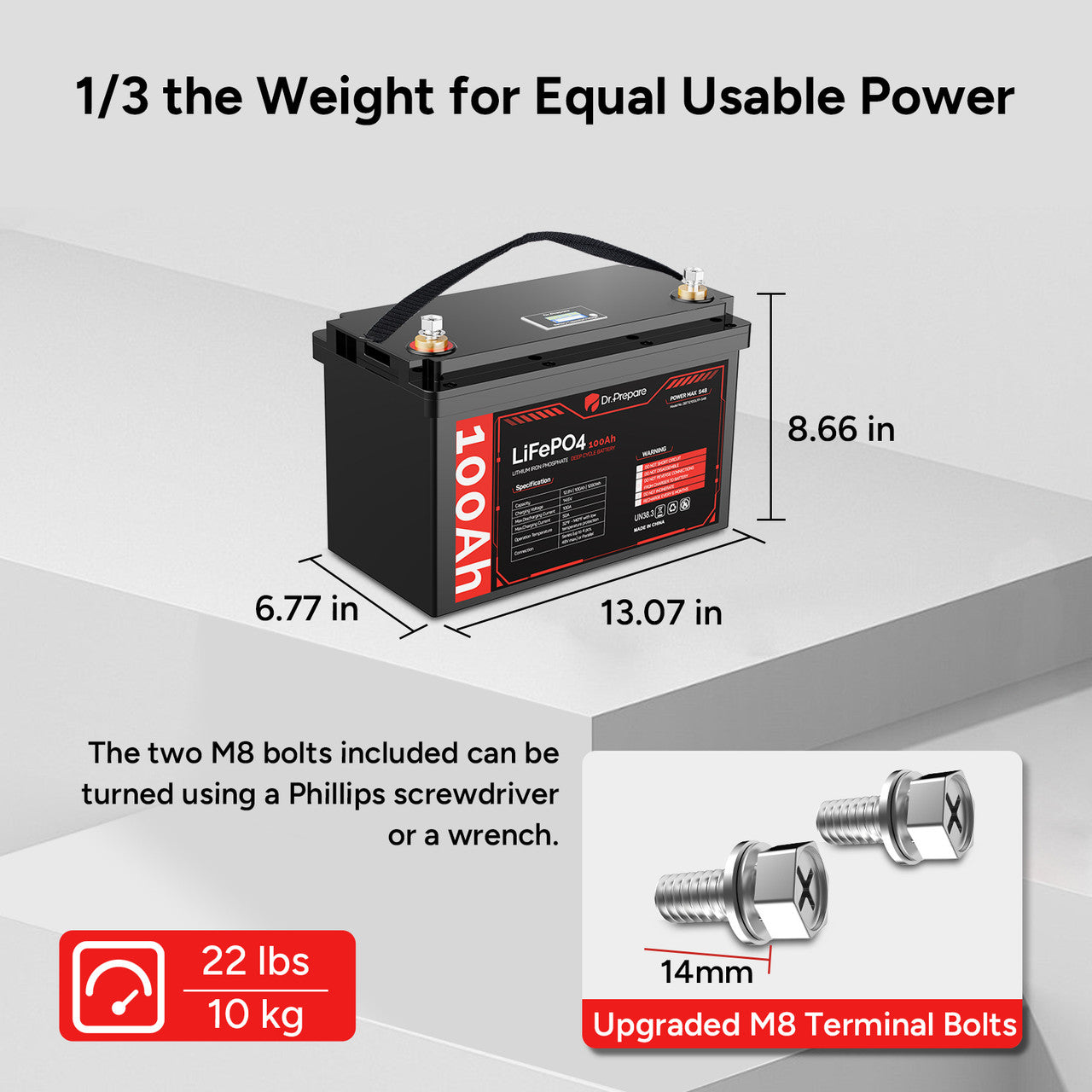

Weight & Dimension
Weight
 22 lbs / 10 kg
Dimension
 13.07 x 8.66 x 6.77 in / 332 x 220 x 172 mm (L x H x W)
Compatible with the Group 31 battery case
Warranty
10-year material warranty

Warning

· Do not install the battery in a location that may be flooded.

· Do not short the battery terminals.

· Do not expose the battery to fire, extreme heat conditions, or close to any heat sources.

· Secure the battery in place to avoid any violent shaking when installing in your vehicle.

· Do not disassemble the battery.

· Do not strike fiercely or penetrate the battery.





Download

How long will this battery last?

Our lithium ion batteries enable more than 3,000 charge and discharge cycles at 80% DOD (Depth of Discharge), which allows for around a 10-year lifetime of daily use.
Does this battery have low temperature protection?

Yes, the improved BMS works with a low temp sensor to provide complete low temperature protection. When the temp reaches 23℉~41℉ / -5℃~5℃, this lithium battery will stop being charged, and when the temp reaches -13℉~5℉ / -25℃~-15℃, the battery will stop discharging.

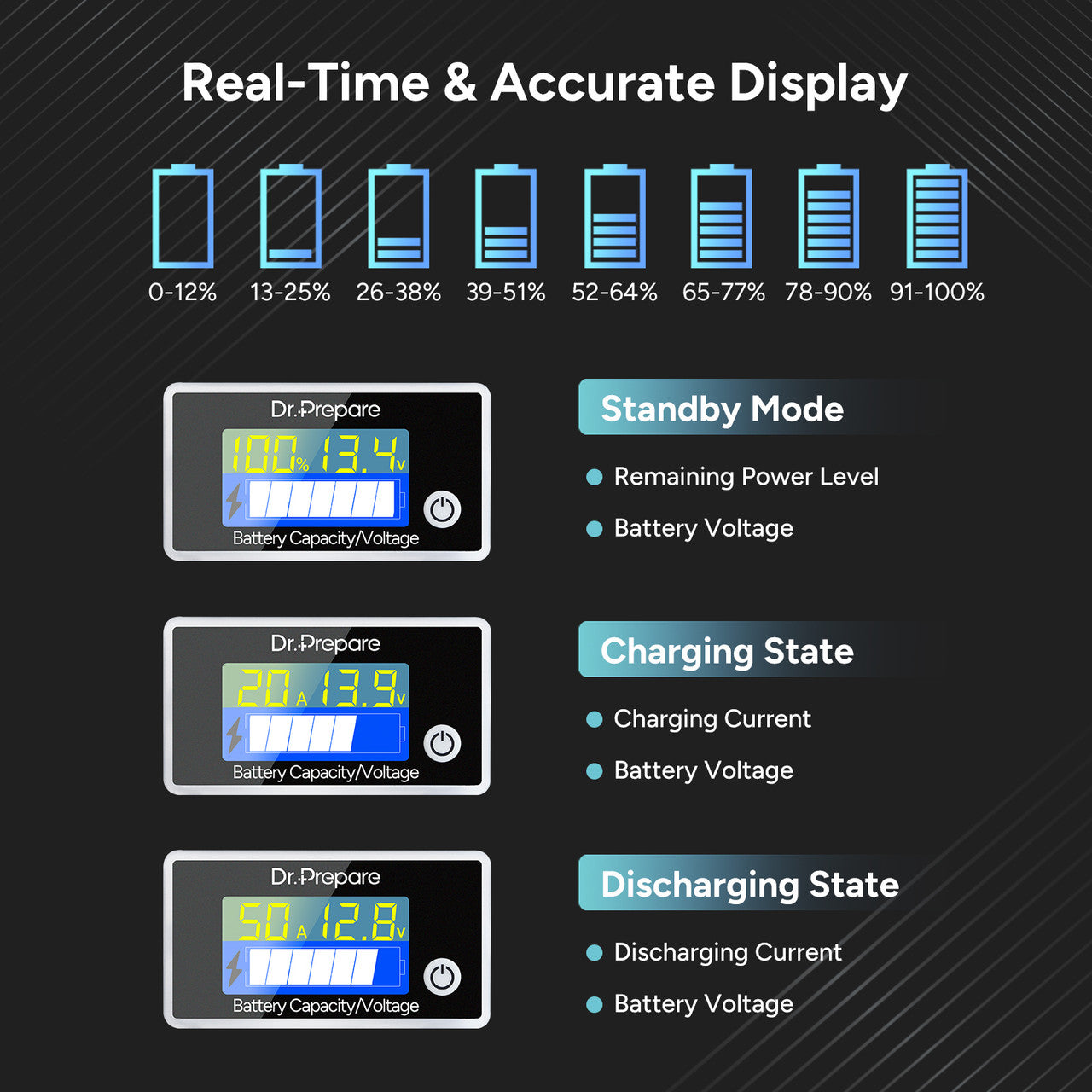

What data can I view from the LED screen?

You can view the remaining power capacity and battery voltage from the LED screen. For monitoring more precise data, we recommend turning off all electrical appliances before checking for current battery capacity.

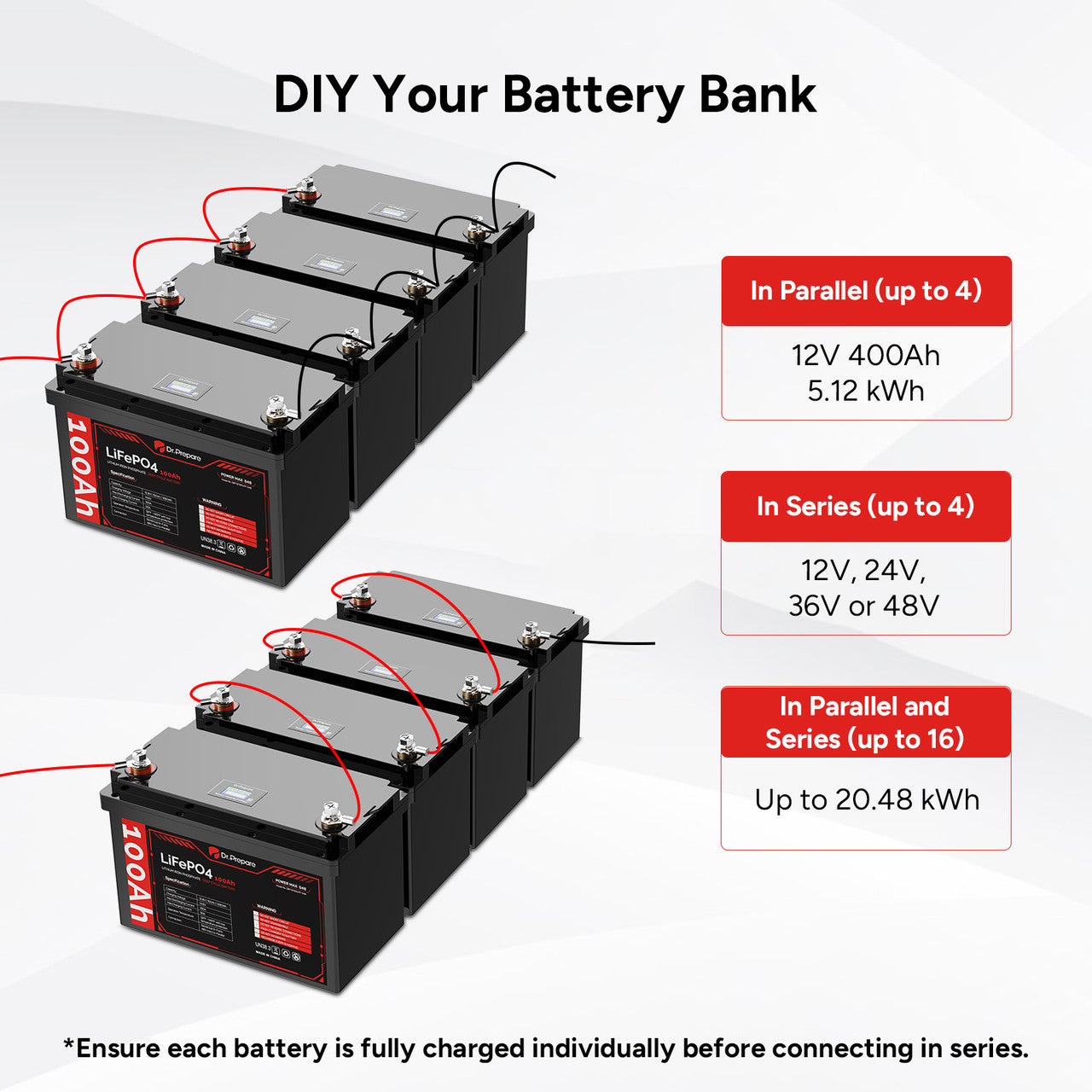

Can I wire these batteries in series and in parallel?

Yes, these Dr.Prepare lithium batteries support series and parallel connection. Please note that you need to use identical batteries to connect.
For optimal performance, we kindly advise you to follow the requirements listed below to connect your batteries together:
1. Fully charge all ready-to-connect batteries.
2. All battery interconnect cables should be the same wire gauge (AWG) and length, and come from the same brand. Otherwise, the impedance will be inconsistent, resulting in unbalanced charge and discharge performance.
3. Connect your batteries one by one in series (up to 4 batteries) or in parallel (up to 4 batteries). Tightly screw all cable connections between the cable lugs and terminals.
Does this battery have low voltage cut-off protection?

Yes, it does. When the discharge voltage is lower than 11.1V, the battery will shut off automatically.
What are the charging voltage and charging current for this battery?

The maximum charging voltage is 14.6V and the maximum charging current is 50A. For optimal charging performance, we highly recommend adjusting the voltage to 14.2V and using a 20A charger.
Can I use my lead acid battery charger to charge the lithium battery?

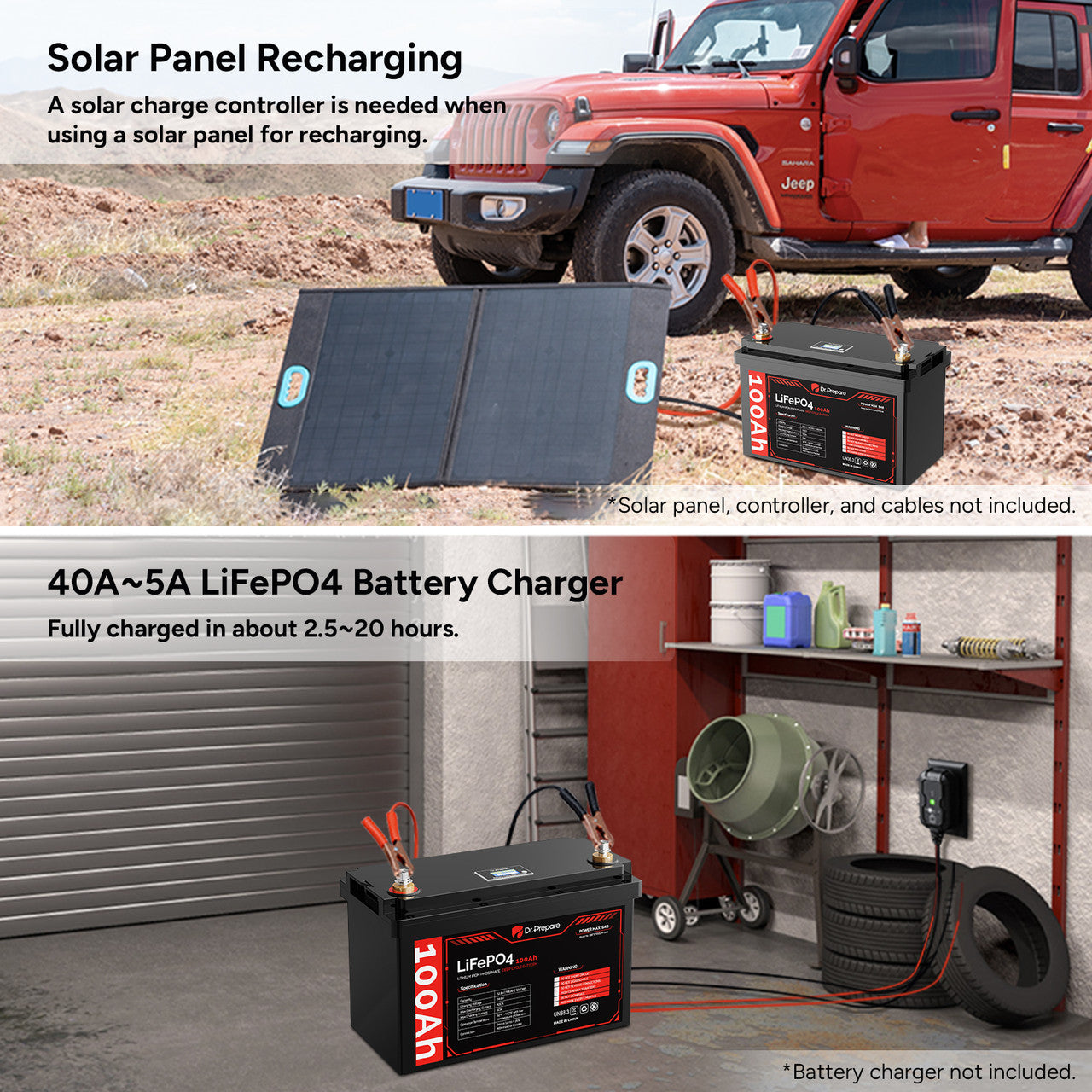

We recommend using a lithium battery compatible AC to DC charger to charge our LiFePO4 batteries, or else cause unreversible lifespan damage to the batteries. You can also charge these batteries using compatible solar charge controllers and solar panels.
How to properly store this battery?

We recommend keeping the battery at 100% state of charge, or at least 30%-50% state of charge. Then disconnect the battery from any load by removing the terminal cables. Highly recommend charging the battery every 6 months when not in use to prevent over-discharge.
When storing the battery for 1-3 months, you can place it in an environment with a temperature range of -4℉~113℉ / -20℃~45℃; when storing it for 1 year, it is recommended to place it in an environment with a temperature range of -4℉~68℉ / -20℃~20℃.
