Dr.Prepare 12V 100Ah LiFePO4 Battery and 60 Amp Circuit Breaker Kit, for Boat, Trolling Motor, Marine, ATV, RV, Trailers

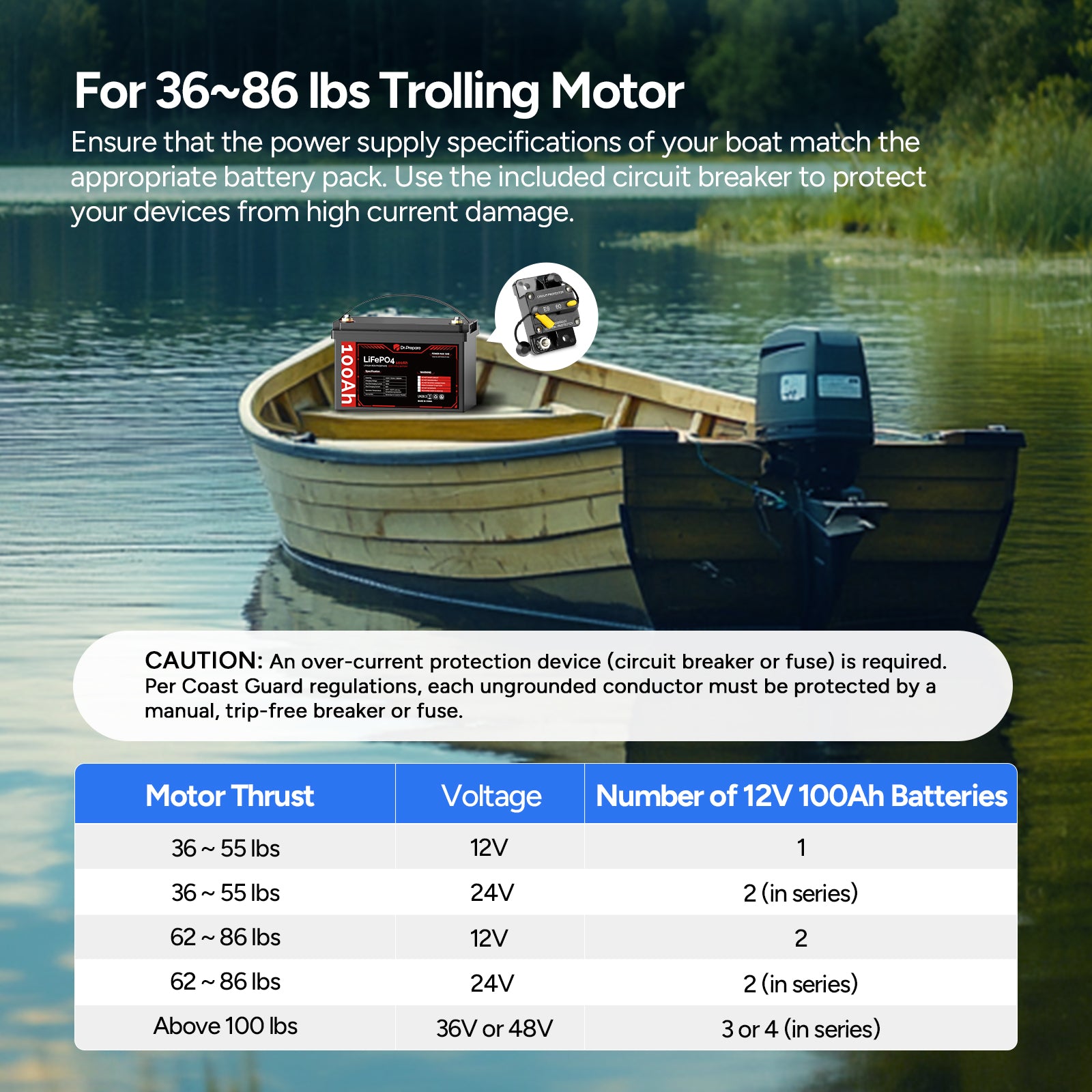

This 12V 100Ah LiFePO4 battery and 60A circuit breaker kit is designed specifically for trolling motors, boats, and other marine applications. It protects trolling motors, marine electronics, and high-power devices from overloads and short circuits.

Choose our more reliable lithium iron phosphate batteries for your family RV trips, off-grid cabins, marine vehicles, solar energy storage, or lead-acid replacement.

Description

  • 【Designed for Trolling Motors & Boats】This kit includes a 12V 100Ah LiFePO4 battery and a 60A circuit breaker — perfect for trolling motors, boats, marine electronics, and other high-power devices. It offers dependable protection against overloads and short circuits.The circuit breaker meets SAE J553, J1625, J1428 30A, J1171, and UL 1500 (ignition protected) safety standards, featuring UL 94V-0 flame-retardant housing and IP67-rated waterproofing.
  • 【Reusable Manual Reset, Simple Setup】Unlike disposable inline fuses, Dr.Prepare 60 Amp circuit breaker resets with a simple manual switch—saving you money on replacements while preventing electrical hazards. No tools needed! Clearly labeled terminals and surface-mount design let you install between battery and device instantly. (Wires not included.) Reset by placing the bar back in place.
  • 【10-Year Lifespan & Built-in BMS】Our Dr.Prepare 100Ah LiFePO4 battery offers a 10-year product support and lifespan. The advanced built-in BMS system provides 20+ layers of protection — including low- and high-temperature cut-off — to protect the battery during charging and discharging, even under extreme conditions. Plus, all internal battery cells are UL-tested and certified to ensure maximum safety and reliability. Circuit breaker comes with 1-year support.
  • 【Upgrade to Dr.Prepare LiFePO4 Batteries】Switch to the 12V 100Ah LiFePO4 battery — lighter, safer, and longer-lasting than traditional lead-acid. Weighing just 22 lbs and lasting up to 10 years, it delivers consistent power with built-in BMS protection. Cut down battery weight, go farther, and enjoy more time on the water.
  • 【Series & Parallel Connections for Powerful Backup Power】Dr.Prepare 12V 100Ah lithium battery supports both series and parallel configurations. Easily build a 24V, 36V, or 48V battery bank with series wiring, or expand your capacity to 12V 200Ah, 300Ah, or 400Ah through parallel connections. For larger setups, you can link up to 16 batteries in series and parallel to create a powerful 20.48 kWh home backup system—ideal for power outages or hurricane season.



Key Features

Trolling Motor

RV, Trailer, Van

Home Backup Power

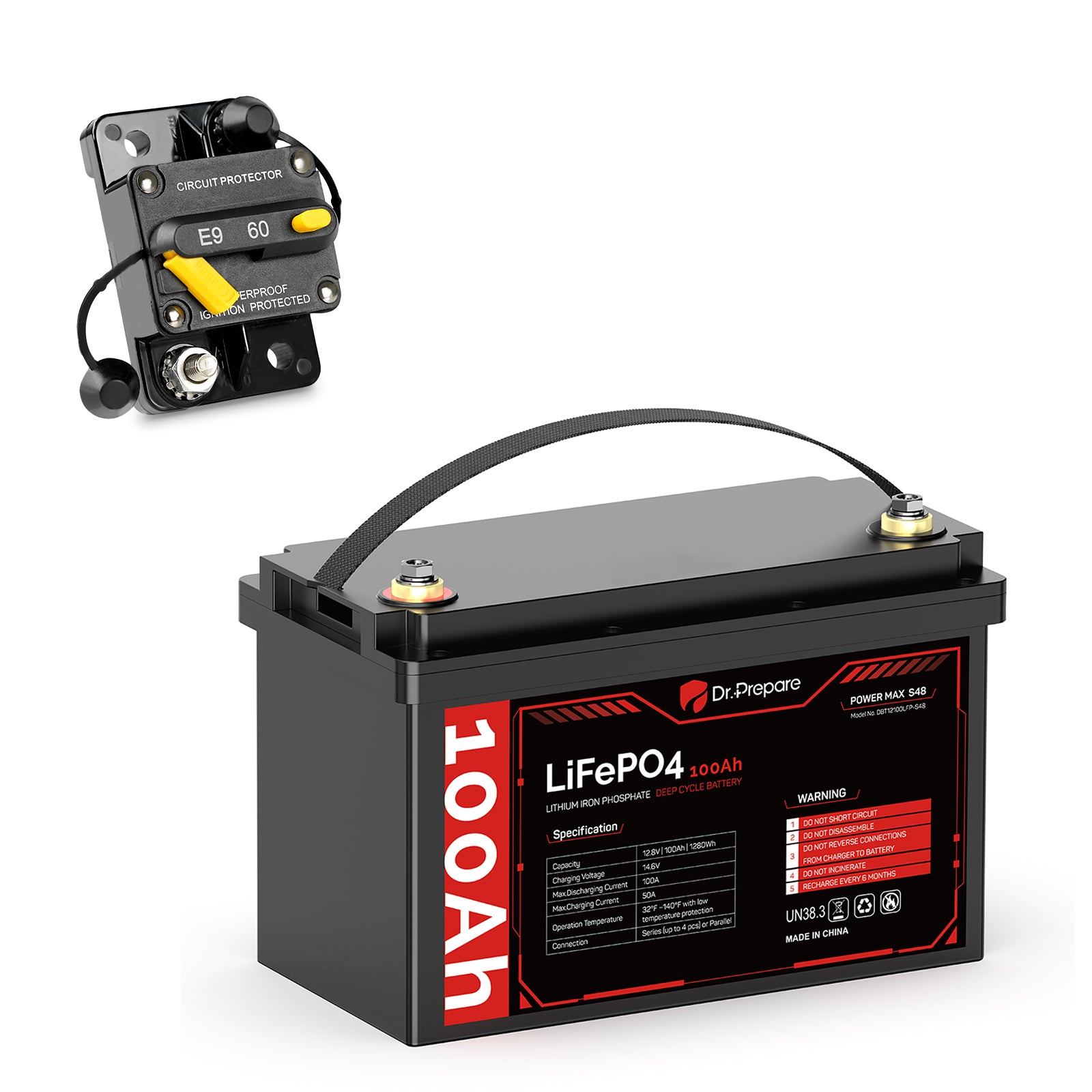

Package Includes

12V 100Ah Lithium Iron Phosphate (LiFePO4) Battery with Handheld Strap X 1
M8 Bolts (A Pair) X 1
60 Amp Circuit Breaker X 1

Specifications

12V 100Ah LiFePO4 Battery
Model DBT12100LFP-S48-G7-US
Nominal Voltage 12.8 V
Energy 1,280 Wh
Rated Capacity (0.2C) 100Ah
Cycle Life (0.2C, 25±5℃) 3,000 Cycles at 80% DOD
Maximum Continuous Discharge Current 100A
Maximum Charge Current Optimal: 20A; Maximum: 50A
Max. Charging Voltage 14.6V
Discharge Cut-off Voltage Lower than 11.1V
Self Discharge Rate 2% ~ 3% per month at 25℃/77℉
Over-Discharge Recovery Voltage 12.6V
Charging Temperature Range 0℃~45℃ / 32℉~113℉
Discharging Temperature Range -10℃~60℃ / 14℉~140℉
Low Temperature Protection Charging: -5℃～+5℃ / 23℉~41℉
Discharging: -25℃ ~ -15℃ / -13℉~5℉
High Temperature Protection Charging: 60℃ ~ 70℃ / 140℉~158℉
Discharging: 70℃ ~ 80℃ / 158℉~176℉
Storage Temperature Range -20℃~45℃ / -4℉~113℉ (Store for 1-3 months)
-20℃~20℃ / -4℉~68℉ (Store for 1 year)
Recommended Operating Temperature 20℃ ~ 30℃ / 68℉~86℉
Terminal Bolt Size Tailor-made M8
Internal Resistance ≤10mΩ
Weight 10 kg / 22 lbs

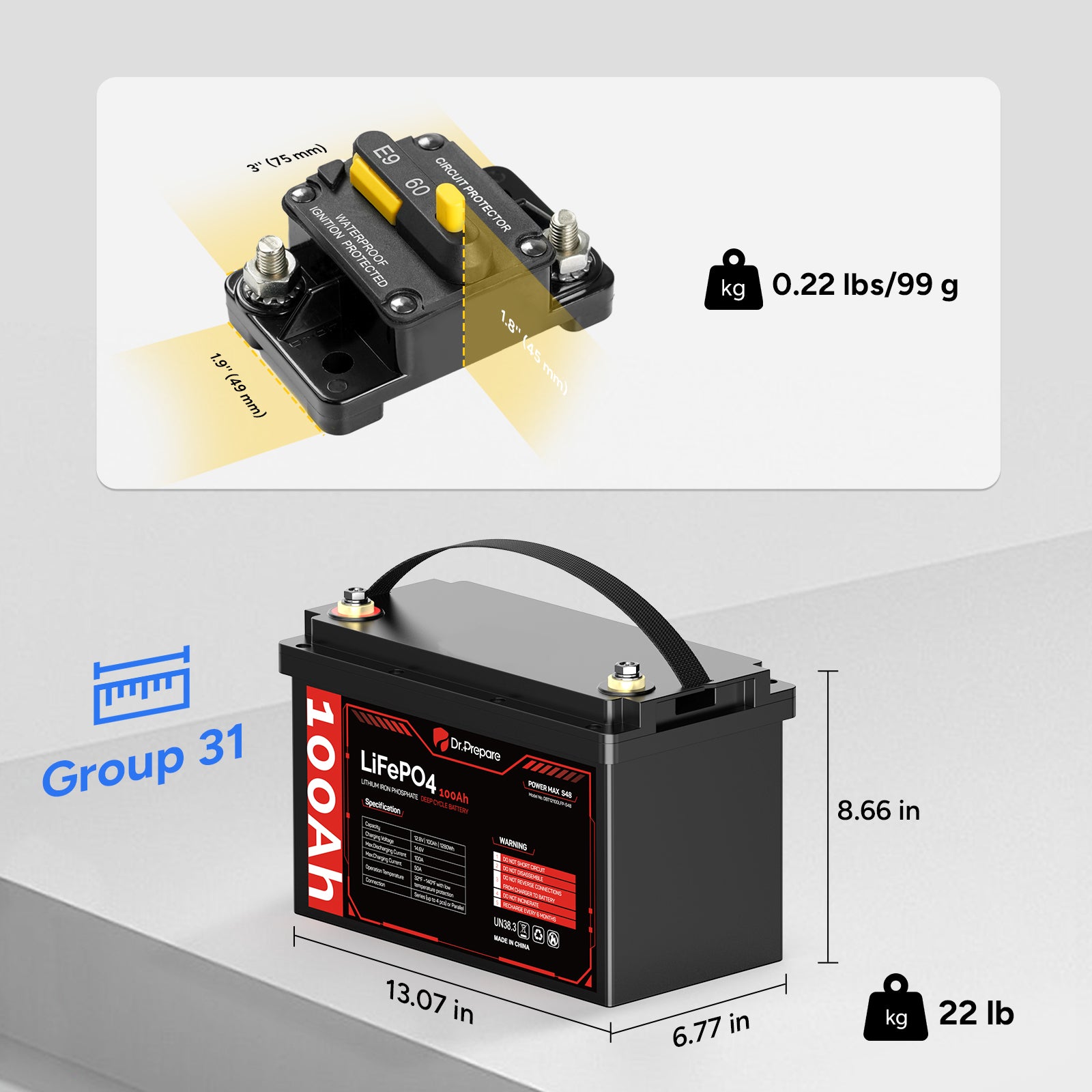

Dimension 332 x 220 x 172 mm / 13.07 x 8.66 x 6.77 in (L x H x W)
Compatible with the Group 31 battery case
Warranty 10-year material warranty for LiFePO4 battery
60 Amp Circuit Breaker
Mounting Surface Mount
Reset Type Manual Reset
Stud Size 1/4'' - 28
Compliances SAE J553, J1625, J142830A, J1171, and UL 1500 (ignition protected)
Operating Temperature -32℃ (-25℉) to 82℃ (180℉)
Waterproof Rating IP67
Housing Rating UL 94V-0
Weight 0.22 lbs/99 g
Dimensions (L x H x W) 1.9 x 3 x 1.8 in / 49 x 75 x 45 mm
Warranty 1-Year Material and Workmanship Warranty

Warning

· Do not install the battery in a location that may be flooded.

· Do not short the battery terminals.

· Do not expose the battery to fire, extreme heat conditions, or close to any heat sources.

· Secure the battery in place to avoid any violent shaking when installing in your vehicle.

· Do not disassemble the battery.

· Do not strike fiercely or penetrate the battery.





Download

Will this work with my 12V/24V/48V system?

Yes! This 60A circuit breaker is compatible with DC 12V-48V systems, including trolling motors, solar setups, and RV power systems.
What's the difference between auto-reset and manual reset?

With a manual reset, you must push the bar back in place after tripping, ensuring the system is safe before restarting. In contrast, auto-reset can cycle repeatedly, which may be unsafe for marine and RV applications.
Are wires included? How do I install this?

Wires not included. Simply connect between the positive terminal of your battery and your device using the appropriate AWG cables (surface mount). Refer to the product listing diagram for guidance!
Can I use this for both AC and DC systems?

Designed for DC systems (e.g., batteries, solar).
Is this really waterproof?

Yes! IP67-rated—fully sealed against dust and water immersion (up to 1m for 30 mins). Ideal for marine engine compartments.
What safety standards does it meet?

Certified to UL 1500 (ignition protection), SAE J1171 (marine), and UL 94V-0 (flame retardant).
Why does my breaker keep tripping?

Usually caused by overloads or shorts. Check for:
1. Wires touching metal (short circuit)
2. Device drawing >60A
3. Loose/corroded connections

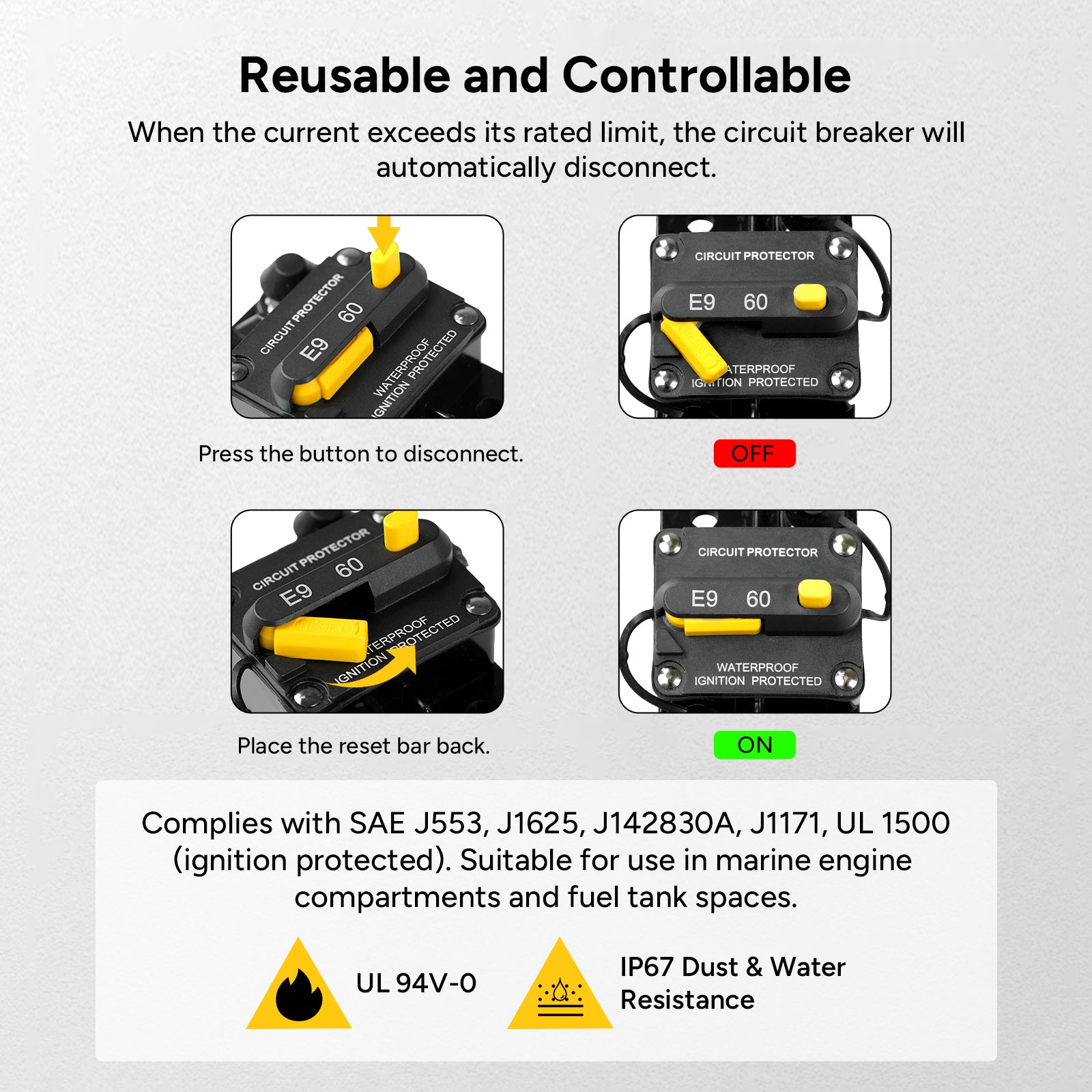

How do I reset it after tripping?

Push the button to 'OFF,' then place the bar back in place to 'ON.' Never force it—resolve the overload first!
More questions about this product? Please contact us .
