12V 7Ah LiFePO4 Lithium Deep Cycle Battery

Sale price$29.99 USD Regular price$39.99 USD
Save $10.00USD
SKU: DBT1207LFP-G1-US
Quantity:

Please allow up to 1 to 2 business days for processing. Standard shipping may take up to 4 to 6 business days.

Contact Us

DR.PREPARE 12V 7Ah LiFePO4 Battery, Lithium Batteries 12V with 7A BMS, 4000+ Deep Cycle Lithium Iron Phosphate Rechargeable Battery for Power Wheels, Solar, Fish Finder, UPS, Lighting, Alarm System

Dr.Prepare's latest 12V 7h lithium batteries are the ideal replacement for sealed lead-acid batteries. With a 10-year warranty and service life, our lithium batteries offer extended assurance compared to other lithium batteries.
Enhanced with a Battery Management System (BMS) and integrated low and high-temperature protections, this battery ensures safe and secure operation. Its lightweight design, at only 1/3 of SLA weight, significantly reduces the burden when carrying it for outdoor backup power.
Additionally, it allows the connection of 4 batteries in series to create a 48V battery bank, or in parallel to build a 28Ah battery bank system.
Upgrade to Dr.Prepare for enduring reliability and efficiency.

Description

  • Longer Lifetime, Lower Costs】 Dr.Prepare 12V 7Ah LiFePO4 batteries offer over 4,000 cycles, surpassing the 300-500 cycles of lead acid batteries. Compared to SLA battery's 40-60% discharge, our lithium batteries can discharge 100%, extending the time between replacements, leading to significant cost savings. Higher energy density and 10 years of daily use from Dr.Prepare Lithium batteries.
  • Built-in 7A BMS Protection, 10-Year Warranty】 Our lithium batteries feature a built-in BMS with 6 safe protections: high-temperature, low-temperature, over-charge, over-discharge, over-current, and short circuit. With IP56 water and dust resistance capabilities, it ensures durability in various conditions. Moreover, devoid of heavy and rare metals, our LiFePO4 batteries are environmentally friendly.

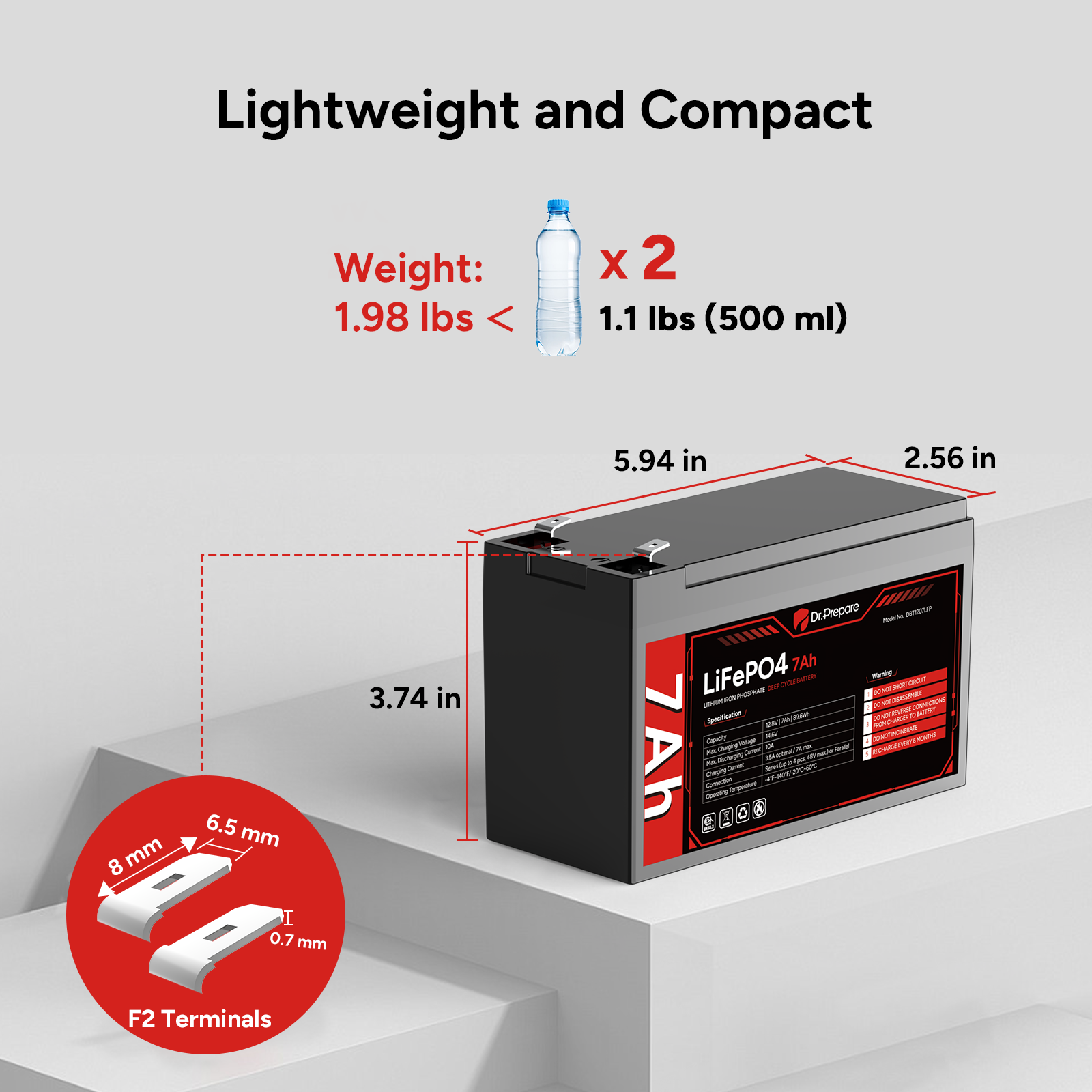

  • Cut the Weight by 60%, No More Heavy Lifting】 Dr.Prepare 12 volt 7Ah lithium battery weighs only 1.98 lbs, lighter than two 500ml water bottles. In comparison, a sealed lead-acid battery typically weighs around 6 to 7 lbs, resulting in a remarkable 60% reduction in weight.

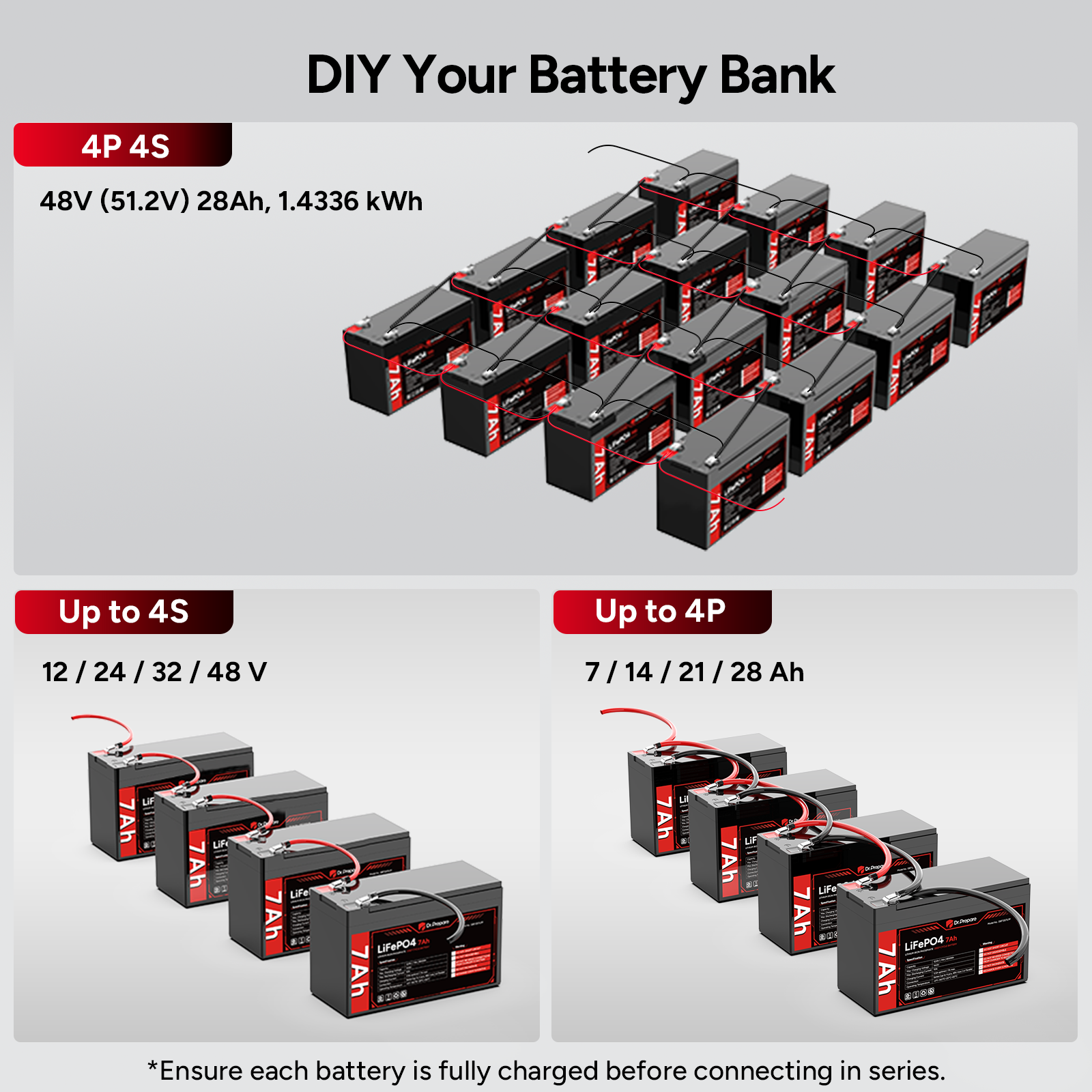

  • Series and Parallel Connection】 Our lithium batteries support wiring in series to create a 24V/36V/48V battery bank system. Additionally, they can be wired in parallel to build a 12V 14Ah/21Ah/28Ah system. Furthermore, you can connect up to 16 batteries in both series and parallel to construct a robust battery bank system with a total capacity of 1.4336 kWh. (Ensure all batteries are fully charged before connecting in series.)
  • Wide Applications】 Our 12V 7Ah lithium battery is the perfect replacement for your less durable SLA batteries. It is suitable for a variety of applications, including fish finders, power wheels, electric scooters, UPS backup power systems, solar gate openers, home alarm systems, home security systems, ham radios, and more (Not a starter battery).
  • Kind Reminder】 To charge Power Wheels, you need to connect the Wire Harness Connector with Dr.Prepare 12V 7Ah LiFePO4 batteries. Wire Harness Connector NOT INCLUDED.



Key Features





Package Includes

● 1 x 12V 7Ah LiFePO4 Battery

● 1 x User Manual





Specifications

Dr.Prepare 12V 7Ah Lithium Iron Phosphate (LiFePO4) Battery
Technical Specifications
Rated Voltage 12.8V
Energy (Usable Capacity) 7Ah / 89.6Wh
Rated Capacity (0.2C) 7Ah / 89.6Wh
Cycle Life (0.2C, 68-86℉/25±5℃) More than 4,000
Maximum Continuous Discharge Current 7A
Charge Current 3.5A Optimal / 7A Max.
Max. Charge Voltage (Charging Cut-off Voltage) 14.6V
Discharge Cut-off Voltage 10V
Self Discharge Rate 3% per month
Over-discharge Recovery Voltage 12.6V
Charging Temperature Range 32℉~131℉ / 0℃~55℃
Discharging Temperature Range -4℉~140℉ / -20℃~60℃
High Temperature Protection Charging: 122℉~140℉ / 55℃±5℃
Discharging: 131℉~149℉ / 60℃±5℃
Low Temperature Protection Charging: 23℉~41℉ / 0℃±5℃
Discharging: -13℉~5℉ / -20℃±5℃
Storage Temperature Range ≤ 45℃ (113℉) (Store for 3 months)
≤ 25℃ (77℉) (Store for 12 months)
Terminal Bolt Size F2
Weight 1.98 lbs / 0.9 kg
Dimensions 5.94 × 2.56 × 3.74 in / 151 × 65 × 95 mm



Download

Is it a motorcycle starter battery?

No, it is NOT a starter battery. Our battery is a deep cycle Lithium Iron Phosphate (LiFePO4) Battery, with a maximum power output of 7Ah.
Does this battery have low temperature protection?

Yes, the built-in BMS works with a low temp sensor to provide complete low temperature protection. When the temperature reaches 23℉ to 41℉ (-5℃ to 5℃), this lithium battery will stop being charged, and then the temperature reaches -13℉ to 5℉ (-25℃ to -15℃), the battery will stop discharging.
Can I wire these batteries in series and in parallel?

Yes, Dr.Prepare 12V 7Ah lithium batteries support both series and parallel connections. Please use identical batteries for the connection. For optimal performance, follow these guidelines:
1. Ensure all batteries are fully charged before connecting.
2. Use interconnect cables of the same wire gauge (AWG) and length from the same brand to maintain consistent impedance, preventing unbalanced charge and discharge performance.
3. Connect batteries one by one in series (up to 4 batteries) or parallel (up to 4 batteries). Securely tighten all cable connections between the lugs and terminals.
Does this battery have low voltage cut-off protection?

Yes, it does. The battery will automatically shut off when the discharge voltage drops below 10V.
What are the charging voltage and charging current for this battery?

The recommended charging parameters are as follows: adjust the voltage to 14.2V and use a 5A charger for optimal performance. While the maximum charging voltage is 14.6V and the maximum charging current is 7A, adhering to these specified values will enhance the charging efficiency of the batteries.
Can I use my lead acid battery charger to charge the lithium battery?

We recommend using a lithium battery-compatible AC to DC charger to charge our LiFePO4 batteries to avoid causing irreversible damage to their lifespan. Additionally, these batteries can be charged using compatible solar charge controllers and solar panels.
How to properly store this battery?

We recommend maintaining the battery at 100% state of charge or, at the very least, 30%-50% state of charge. Disconnect the battery from any load by removing the terminal cables. It's highly advisable to charge the battery every 6 months during periods of non-use to prevent over-discharge.

For storage lasting 1-3 months, keep the battery in an environment with a temperature range of -4℉ to 113℉ / -20℃ to 45℃. For longer storage periods, particularly up to 1 year, it is recommended to store it in an environment with a temperature range of -4℉ to 68℉ / -20℃ to 20℃.
More questions about this product? Please contact us.
